Vipertex® enhanced surfaces can be applied to one or both sides of the surface.

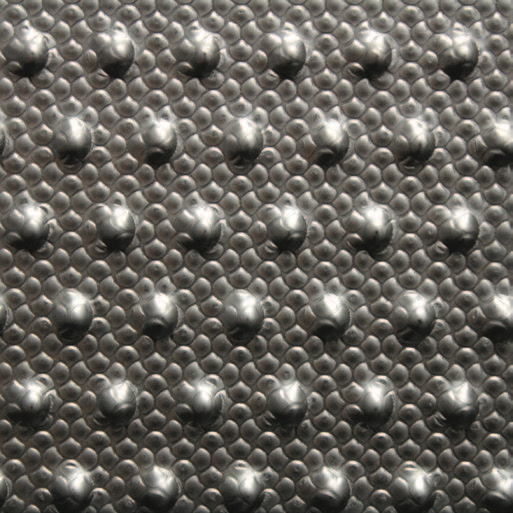

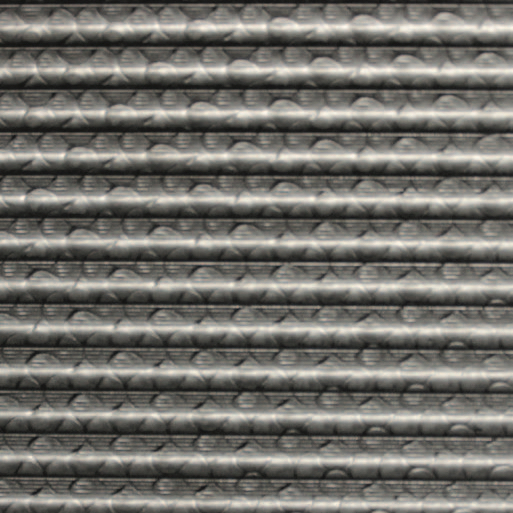

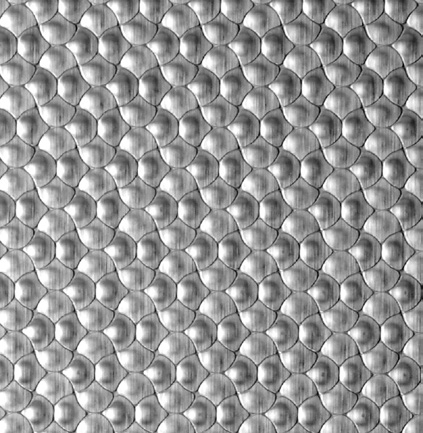

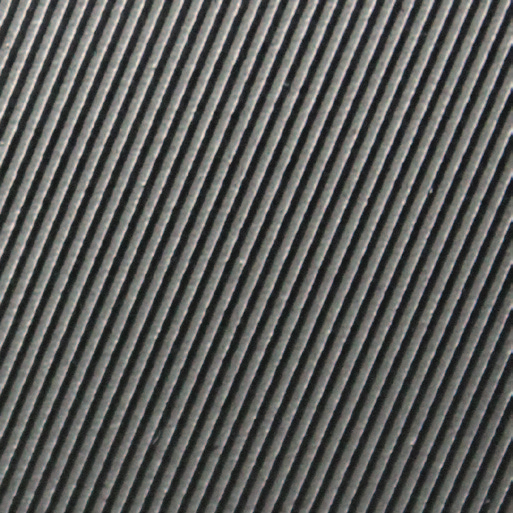

Here are four examples of the many patterns available (click each photo for a closeup):
An add-in suite for the HTRI software program is available to aid in system modeling.
Also available are Vipertex® multipliers that can be used with Aspen design software.
Features
- Increased surface area for more efficient heat transfer
- Improved nucleation sites for quicker and easier evaporation
- Amplified turbulence to minimize laminar flow
- Upgraded anti-fouling characteristics to increase optimal performance lifespan
- Augmented drainage features to improve condensation
- Enhanced thermal transfer per unit length
Benefits
- Minimized unit size
- Lower charging fluid requirements
- Improved unit efficiency
- Decreased capital expenditures
- Reduced operating costs
- Smaller footprints
Available Materials & Alloys
Stainless steel, nickel alloy, and titanium tubing is available as straight lengths or in one of several coil configurations. Tubing can be ‘welded to size’ or ‘welded and drawn tubing’, and can also be manufactured with enhanced properties.
TIG Welded Tubular Products
- 304/304L, 316/316L, 321, 2205, 825, 625, C276, and Titanium
- ASTM A1098
- 1/16” to 1” O.D.
- 0.010” to 0.083” wall
- Welded to size, welded and drawn
- Orbital welding, spooling, and straightening
- Long length coils (35,000 ft +) and precision cut straight lengths
- Tubing is fully annealed unless otherwise specified
- Product available in stick or custom coil configurations
- Flat rolled enhanced steel available for turbulators or twisted tape
View the Vipertex Brochure
For information about other alloy systems in tubing and flat rolled configurations, visit vipertex.com
Vipertex® advanced tubing has been designed, engineered and manufactured through a partnership of New World Stainless and Rigidized® Metals Corporation.
New World Stainless
An American manufacturer of precision-welded tubing that delivers reliable performance in applications requiring high pressure tolerance and enhanced corrosion resistance. NWS sets the bar in premium stainless and titanium pressure tubing.
Rigidized® Metals Corporation
Leading the world in the development and production of deep-textured, engineered metal surfaces used in a variety of applications. Our deep-texturing process adds strength and resiliency, and results in lighter, longer-lasting products and reduced maintenance costs. Please visit rigidized.com for alternatives to stainless and titanium tubing.
